Stuwage
Laadcapaciteit optimaal benutten

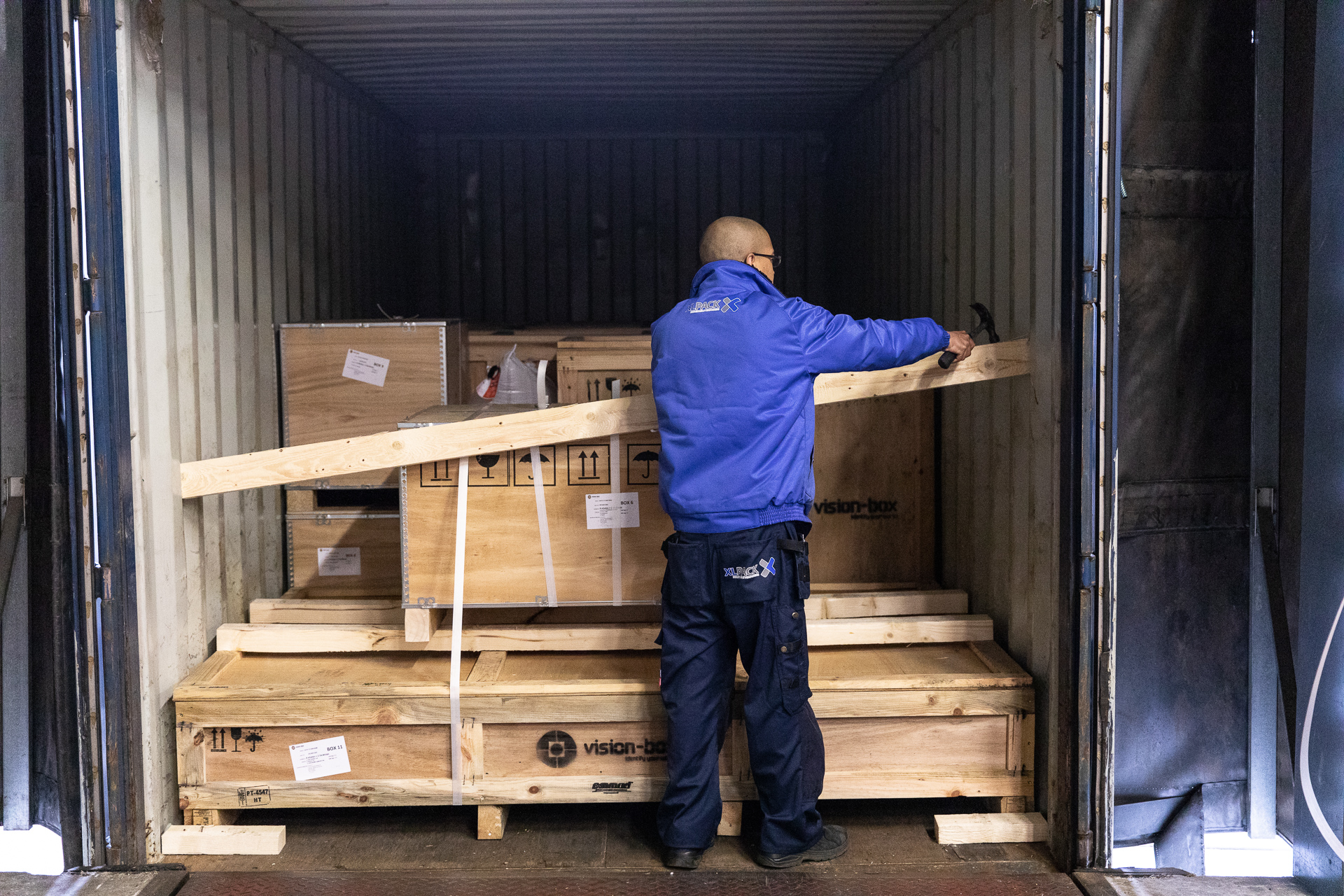

XLPack is gespecialiseerd in containerstuwage. Bij het stuwen maken we gebruik van diverse typen containers voor zeetransport. Hieronder vindt u een overzicht.
General Purpose Container 20′ x 8′ x 8’6″
| Internal Dimensions |
Length |
5,898 mm |
19’4.2″ ft |
|
Width |
2,352 mm |
7’8.6″ ft |
|
Height |
2,391 mm |
7’10″ ft |
| Door Opening |
Width |
2,340 mm |
7’8″ ft |
|
Height |
2,280 mm |
7’5.8″ ft |
| Weight |
Max Gross |
24,000 kg |
52,910 lbs |
|
Tare |
2,280 kg |
5,090 lbs |
|
Max Payload |
21,720 kg |
47,885 lbs |
| Internal Capacity |
33.2 m3 |
1,171 ft3 |
General Purpose Container 40′ x 8′ x 8’6″
| Internal Dimensions |
Length |
12,040 mm |
39’5.3″ ft |
|
Width |
2,353 mm |
7’8.5″ ft |
|
Height |
2,383 mm |
7’9.7″ ft |
| Door Opening |
Width |
2,340 mm |
7’8″ ft |
|
Heigth |
2,280 mm |
7’5.8″ ft |
| Weight |
Max Gross |
30,480 kg |
67,200 lbs |
|
Tare |
3,830 kg |
8,450 lbs |
|
Max Payload |
26,650 kg |
58,630 lbs |
| Internal Capacity |
67.7 m3 |
2,390 ft3 |
High Cube Container 40′ x 8′ x 9’6″
| Internal Dimensions |
Length |
12,031 mm |
39’5.6″ ft |
|
Width |
2,352 mm |
7’8.5″ ft |
|
Height |
2,698 mm |
8’10″ ft |
| Door Opening |
Width |
2,340 mm |
7’8.1″ ft |
|
Heigth |
2,585 mm |
8’5.8″ ft |
| Weight |
Max Gross |
30,480 kg |
67,200 lbs |
|
Tare |
3,980 kg |
8,775 lbs |
|
Max Payload |
26,500 kg |
58,425 lbs |
| Internal Capacity |
76.3 m3 |
2,694 ft3 |
High Cube Container 45′ x 8′ x 9’6″
|
Length |
13,544 mm |
44’5.2″ ft |
|
Width |
2,352 mm |
7’8.5″ ft |
|
Height |
2,698 mm |
8’10″ ft |
| Door Opening |
Width |
2,340 mm |
7’8.1″ ft |
|
Heigth |
2,585 mm |
8’5.8″ ft |
| Weight |
Max Gross |
30,480 kg |
67,200 lbs |
|
Tare |
4,800 kg |
10,580 lbs |
|
Max Payload |
25,680 kg |
56,614 lbs |
| Internal Capacity |
86 m3 |
3,040 ft3 |
Open Top Container 40′ x 8′ x 8’6″
| Internal Dimensions |
Length |
12,021 mm |
39’5.2″ ft |
|
Width |
2,350 mm |
7’8.4″ ft |
|
Height |
2,330 mm |
7’7.7″ ft |
| Door Opening |
Width |
2,338 mm |
7’8″ ft |
|
Heigth |
2,234 mm |
7’3.8″ ft |
| Weight |
Max Gross |
36,000 kg |
79,370 lbs |
|
Tare |
4,430 kg |
9,760 lbs |
|
Max Payload |
31,570 kg |
69,600 lbs |
| Internal Capacity |
66.7 m3 |
2,355 ft3 |
Open Top Container 20′ x 8′ x 8’6″
| Internal Dimensions |
Length |
5,902 mm |
19’4.3″ ft |
|
Width |
2,240 mm |
7’4.1″ ft |
|
Height |
2,352 mm |
7’8.5″ ft |
| Door Opening |
Width |
2,335 mm |
7’7.9″ ft |
|
Heigth |
2,240 mm |
7’4.1″ ft |
| Weight |
Max Gross |
24,000 kg |
52,910 lbs |
|
Tare |
2,440 kg |
5,380 lbs |
|
Max Payload |
21,560 kg |
47,520 lbs |
| Internal Capacity |
32 m3 |
1,133 ft3 |
